HENG YANG escort destroyers (1944/1947)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 惠陽 [Hui Yang] (ex-杉 [Sugi]) | Fujinagata, Osaka, Japan | 2/1944 | 3.7.1944 | 8.1944 // 6.7.1947 | to Taiwan 2.1949 (惠陽 [Hui Yang]), stricken 11.1954 | ||
| 衡陽 [Heng Yang] (ex-楓 [Kaede]) | Yokosuka K K, Japan | 3/1944 | 25.7.1944 | 10.1944 // 6.7.1947 | to Taiwan 2.1949 (衡陽 [Heng Yang]), stricken 11.1954 |
Technical data
| Displacement standard, t | 1262 |
|---|---|
| Displacement full, t | 1650 |
| Length, m | 92.2 pp 98.0 wl 100.0 oa |
| Breadth, m | 9.35 |
| Draught, m | 3.30 |
| No of shafts | 2 |
| Machinery | 2 sets Kampon geared steam turbines, 2 Kampon boilers |
| Power, h. p. | 19000 |
| Max speed, kts | 27.8 |
| Fuel, t | oil 370 |
| Endurance, nm(kts) | 4680(16) |
| Armament | 1 x 2 - 127/40 89-shiki, 1 x 1 - 127/40 89-shiki, 4 x 3 - 25/60 96-shiki, 17 x 1 - 25/60 96-shiki, 1 x 4 - 610 TT, 7 DCT, 2 DCR (60) |
| Electronic equipment | 2-shiki 2-go, 3-shiki 1-go radars, 93-shiki sonar |
| Complement | 211 |

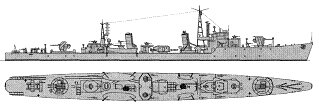

Standard scale images
Hui Yang 1949
Project history
Former Japanese Matsu class escort destroyers, transferred by reparations.
Modernizations
None.
Naval service
No significant events.
