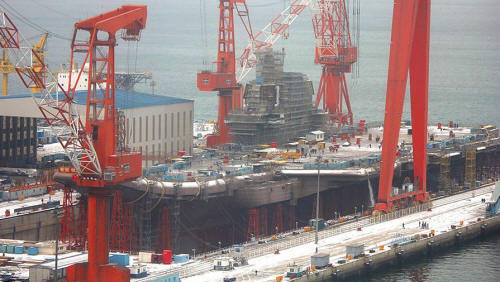

Shandong 2016

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
山东 [Shangdong]	17		Dalian SB	19.11.2013	26.4.2017	2019	trials (2019)

Technical data

Displacement standard, t	48000
Displacement full, t	65000
Length, m	285.00 pp 315.0 oa
Breadth, m	38.0 wl 75.0 deck
Draught, m	12.0 max
No of shafts	4
Machinery	4 geared steam turbines, 8 boilers
Power, h. p.	160000
Max speed, kts	30
Fuel, t	oil
Endurance, nm(kts)	14000(16)
Armament	4 x 24 HQ-9 SAM (96 HQ-9), 4 x 11 - 30/80 type 1130, 44 aircraft (J-15 fighters, Z-18F, Z-18J, Z-9C, Ka-31 helicopters)
Electronic equipment	type 346, 4x type 347G radars, ECM suite, 4 24-tubes and 2 16-tubes decoy launchers, CCS
Complement	4000

Air group

Year	Fighters	Helicopters
as planned	36 J-15	4 Ka-31, 2 Z-9C

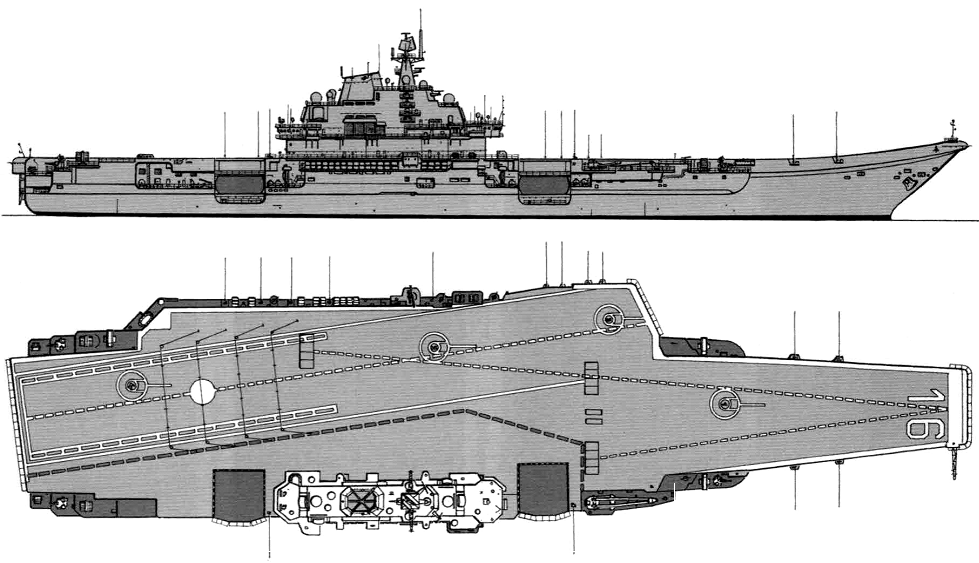

Standard scale images

Graphics

Aircraft facilities

 (fd - 14,800 m², ha - 3,978 m² / 31,824 m³): Flight deck: 314.5 x 75.0m. Hangar: 153.0 x 26.0 x 8.00 m. There are 2 deck-edge elevators (40t, 20 x 15m). There is a ski-jump. Aircraft fuel stowage: 2500 t of jet fuel.

Project history

Further development of Russian Admiral Kuznetsov, built by Chinese shipyard. Type 001A instead of type 001 Liaoning.

Ship protection

Underwater protection consists of 3 longitudinal bulkheads (2nd bulkhead is armoured). Aviation fuel tanks and magazines have box protection.
