PILOTO PARDO amphibious transport (1959)

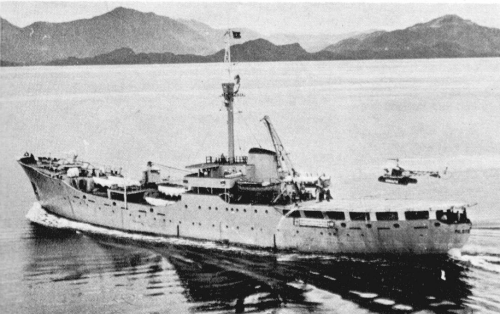

Piloto Pardo 1979
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Piloto Pardo | 45 | Haarlemsche SM, Netherlands | 1957 | 11.6.1958 | 7.4.1959 | sold 1998 |
Technical data
| Displacement standard, t | 2000 |
|---|---|
| Displacement full, t | 3000 |
| Length, m | 82.0 |
| Breadth, m | 11.9 |
| Draught, m | 4.60 |
| No of shafts | 2 |
| Machinery | diesel-generators, 2 electric motors |
| Power, h. p. | 2000 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6000(10) |
| Armament | 1 x 1 - 102/50 Mk 12, 2 x 1 - 20/70 Mk 10, helicopter deck |
| Military load | 24 passengers, cargo |
| Electronic equipment | radar |
| Complement | 44 |
Standard scale images
Piloto Pardo 1965
Graphics
Piloto Pardo 1979
Project history
Antarctic patrol ship, transport and research vessel, ice strengthened.
Modernizations
None.
Naval service
No significant events.
