SERRANO frigates (1943/1966)

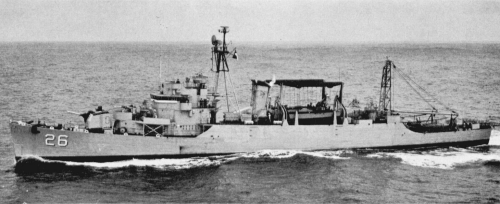

Serrano 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Serrano (ex-Odum) 26   Consolidated, Orange, USA 10.1943 19.1.1944 1.1945 // 25.11.1966 hulk 6.1984
Orella (ex-Jack C. Robinson) 27   Consolidated, Orange, USA 11.1943 8.1.1944 2.1945 // 25.11.1966 hulk 10.1984
Riquelme (ex-Joseph E. Campbell) 28   Bethlehem, Hingham, USA 3/1943 26.6.1943 9/1943 // 1.12.1966 stricken 3.1982
Uribe (ex-Daniel T. Griffin) 29   Bethlehem, Hingham, USA 9/1942 23.2.1943 6/1943 // 1.12.1966 stricken 7.1995


Technical data


Displacement standard, t1725
Displacement full, t

2114

Length, m

91.4 wl 93.3 oa

Breadth, m

11.3

Draught, m

3.84 full load

No of shafts2
Machinery

2 General Electric steam turbo-generators, 2 boilers, 2 electric motors

Power, h. p.

12000

Max speed, kts

23.6

Fuel, t

oil 347

Endurance, nm(kts)5500 (15)
Armament

1 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 10, 2 DCR

Military load

4 LCVP, 162 marines, deck cargo

Electronic equipmentSPS-4 radar, QGA sonar
Complement203


Standard scale images

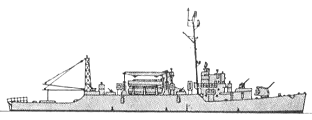

<i>Orella </i>1970
Orella 1970
<i>Orella </i>1980
Orella 1980


Graphics


<i>Serrano</i> 1979
Serrano 1979


Project history

Constructed as destroyer escorts, these units were converted to high speed transports while in US service. Chile employed these ships as escorts. These four were transferred instead of three Fletcher class units.

Modernizations

None.

Naval service

Riquelme was used for spare parts and was not commissioned.
