PILOTO SIBBALD patrol vessel (1916/1920)
Piloto Sibbald 1931
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Piloto Sibbald (ex-Stoic) | Bow McLachlan, Paisley, UK | 1916 | 1916 // 1920 | tug 1945 |
Technical data
| Displacement normal, t | 1100 |
|---|---|
| Displacement full, t | |
| Length, m | 43.1 |
| Breadth, m | 8.69 |
| Draught, m | 3.35 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 cylindrical boilers |
| Power, h. p. | 1200 |
| Max speed, kts | 11.5 |
| Fuel, t | coal 145 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 37/20 Hotchkiss |
| Complement | 18 |
Graphics

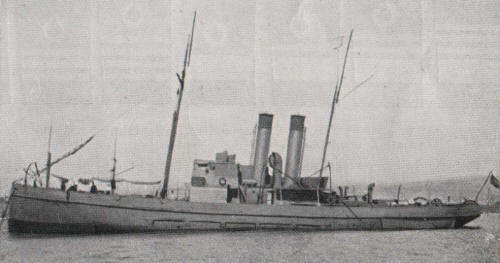

Piloto Sibbald 1931
Project history
Patrol vessel intended for coast guard, search and rescue service. Possessed fire fighting and salvage equipment. Ship was completed in 1916 and requisitioned by Royal Navy as Stoic. After the war she was re-purchased by Chile.
Modernizations
None.
Naval service
In 1945 Piloto Sibbald was converted to tug but classified as coast guard vessel and served till 1960s.
