MAGALLANES composite gunboat (1874)
Magallanes
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Magallanes | Ravenhill, London, UK | 1872 | 28.7.1873 | 12.1874 | sold 1906 |
Technical data
| Displacement normal, t | 950 |
|---|---|
| Displacement full, t | |
| Length, m | 59.9 pp 61.0 oa |
| Breadth, m | 9.09 |
| Draught, m | 3.51 max |
| No of shafts | 2 |
| Machinery | 2 HC |
| Power, h. p. | 1040 |
| Max speed, kts | 11 |
| Fuel, t | coal 300 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 178/14 Armstrong 115pdr MLR, 1 x 1 - 161/14 Armstrong 64pdr MLR, 2 x 1 - 95/16 Armstrong 20pdr BLR |
| Complement | 200 |
Graphics

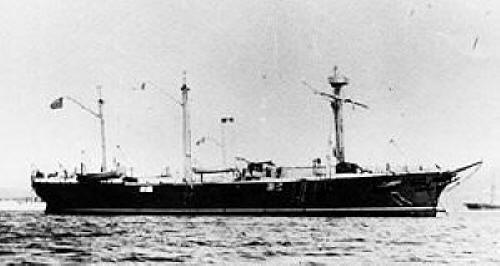

Magallanes
Project history
Barque-rigged boat with one funnel.
Modernizations
None.
Naval service
No significant events.
