CASMA corvettes (1944/1946)

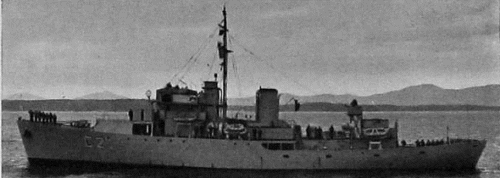

Chipana 1946

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Casma (ex-Stellarton) C, 1960- 37   Morton, Quebec City, Canada 11.1943 27.4.1944 9.1944 // 1946 sold 7.1969
Chipana (ex-Strathroy) C2, 1960- 38   Midland, Canada 11.1943 15.6.1944 11.1944 // 1946 sold 7.1969
Papudo (ex-Thorlock) P, 1960- 39   Midland, Canada 9.1943 15.5.1944 11.1944 // 1946 sold 5.1967


Technical data


Displacement standard, t

1000

Displacement full, t

1370

Length, m

57.9 pp 63.5 oa

Breadth, m

10.1

Draught, m

4.42 deep load

No of shafts

1

Machinery

1 VTE, 2 Admiralty 3-drum boilers

Power, h. p.

2750

Max speed, kts

16.5

Fuel, t

oil 337

Endurance, nm(kts)

7400(10)

Armament

1 x 1 - 102/40 CP Mk XXIII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 1 x 24 - 178 Hedgehog ASWRL, 4 DCT, 2 DCR (100)

Electronic equipment

type 271Q or type 273 or type 291 radar, type 144 sonar

Complement

109



Standard scale images


<i>Chipana </i>1950
Chipana 1950
<i>Casma </i>1960
Casma 1960


Graphics


<i>Chipana </i>1946
Chipana 1946


Project history

Canadian-built modified Flower class corvettes purchased from the RCN.

Modernizations

None.

Naval service

Chipana was employed as survey ship.
