SERRANO destroyers (1928-1929)





Teniente Serrano on trials

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sargento Aldea A   Thornycroft, Southampton, UK 3.1928 24.11.1928 7.1929 stricken 2.1958
Ingeniero Hyatt H, 1960- 13?   Thornycroft, Southampton, UK 9.1927 21.7.1928 4.1929 stricken 1.1963
Capitán Orella O, 1960- 12   Thornycroft, Southampton, UK 6.1927 8.3.1928 12.1928 stricken 9.1966
Guardiamarina Riquelme R, 1960- 11?   Thornycroft, Southampton, UK 7.1927 21.5.1928 4.1929 stricken 1.1963
Teniente Serrano S, 1960- 10   Thornycroft, Southampton, UK 6.1927 25.1.1928 12.1928 stricken 9.1966
Cirujano Videla V   Thornycroft, Southampton, UK 1.1928 16.10.1928 7.1929 stricken 2.1958


Technical data


Displacement standard, t1090
Displacement full, t1430
Length, m

87.9 pp 91.4 oa

Breadth, m

8.84

Draught, m

3.86

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 3 Thornycroft boilers

Power, h. p.

28000

Max speed, kts

35

Fuel, t

oil 320

Endurance, nm(kts)
Armament

Serrano, Orella, Hyatt: 3 x 1 - 120/45 Vickers-Armstrong E, 1 x 1 - 76/40 12pdr 12cwt QF Mk I/II, 3 x 1 - 7.7/87, 2 x 3 - 533 TT, 2 DCT, mines

Aldea, Requelme, Videla: 3 x 1 - 120/45 Vickers-Armstrong E, 1 x 1 - 76/40 12pdr 12cwt QF Mk I/II, 3 x 1 - 7.7/87, 2 x 3 - 533 TT, 2 DCT, mechanical minesweeping gear

Complement

130



Standard scale images


<i>Teniente Serrano </i>1938
Teniente Serrano 1938
<i>Teniente Serrano </i>1955
Teniente Serrano 1955


Graphics

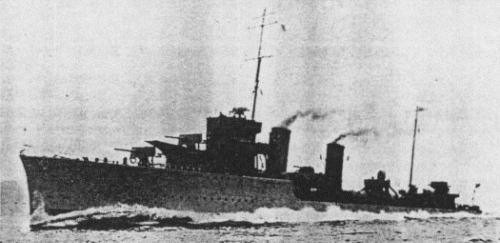

<i>Teniente Serrano </i>on trials
Teniente Serrano on trials

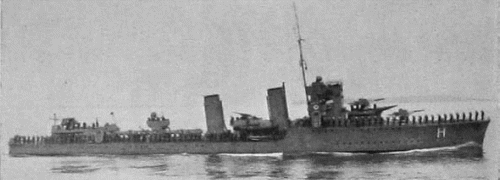

<i>Ingeniero Hyatt </i>1950
Ingeniero Hyatt 1950


Project history

In 1927 Chilean Government has concluded with Thornycroft the contract on building of 6 destroyers in cost on 230.000£ for each. The design was developed on the basis of constructed by the same builder British destroyer Amazon, but differed by decreased dimensions, machinery capacity and absence of gun No4. Instead Serrano, Orella and Hyatt were equipped for minelaying, and Aldea, Requelme and Videla for minesweeping. On trials all destroyers on 1-1.5kts exceeded contract speed (for example, Orella reached 35.9kts). All ships were arranged for service in various climatic conditions, from high latitudes to tropics, but because of weak hull construction have been recognised by unsuitable for service in Antarctic because of what in this region it was necessary to use older ships of Almirante Lynch class.    Serrano and Orella arrived to Chile 22.2.1929, remaining in September of the same year.

Modernizations

late 1940s, all: - 3 x 1 - 7.7/87; + 3 x 1 - 20/70 Mk 4

late 1950s, all survived: - 1 x 1 - 120/45, 1 x 1 - 76/40, 1 x 3 - 533 TT; + 1 x 24 - 178 Hedgehog Mk 11 ASWRL, radars, sonar

Naval service

Ships served more than 30 years, not passing significant modernizations.
