ALMIRANTE RIVEROS destroyers (1960)





Almirante Williams

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Almirante Riveros 18   Vickers, Barrow, UK 12.4.1957 12.12.1958 31.12.1960 stricken 11.1994
Almirante Williams 19   Vickers, Barrow, UK 20.6.1956 5.5.1958 26.3.1960 stricken 1.1996


Technical data


Displacement standard, t2730
Displacement full, t3300
Length, m

122.5

Breadth, m

13.1

Draught, m

4.00

No of shafts

2

Machinery

2 sets Parsons Pametrada geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

54000

Max speed, kts

34.5

Fuel, t

oil

Endurance, nm(kts)6000(16)
Armament

4 x 1 - 102/62 Vickers Mk Q, 6 x 1 - 40/70 Breda-Bofors type 564, 1 x 5 - 533 TT, 2 x 3 - 305 Squid Mk 4 ASWRL

Electronic equipmentAWS-1, 2x SGR-102 radars, type 184B sonar
Complement

266

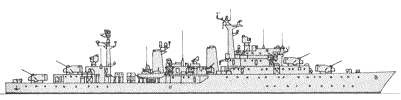

Standard scale images


<i>Almirante Williams </i>1960
Almirante Williams 1960
<i>Almirante Williams </i>1970
Almirante Williams 1970
<i>Almirante Williams </i>1980
Almirante Williams 1980


Graphics


<i>Almirante Williams</i>
Almirante Williams
<i>Almirante Riveros </i>1976
Almirante Riveros 1976


Project history

Ordered in 1955. Ships had air-conditioned quarters for entire crew. The Vickers designed main armament was unique with 11400m max range and 75° max elevation. Like many Chilean warships, they were camouflaged.

Modernizations

1964, both: - 2 x 1 - 40/70; + 2 x 4 Seacat GWS20 SAM (16 Seacat), 2x M4 radars

(1971-1974, Swan Hunter), Almirante Williams; (1973-1975, Swan Hunter), Almirante Riveros: - 1 x 5 - 533 TT; + 4 x 1 Exocet MM38 SSM (4 MM38), SNW-10, Decca 1629 radars

1980, both: - 2 x 1 Exocet MM38 SSM

1980s, both: + WLR-1 ECM

1986, Almirante Williams: - 1 x 1 - 102/62 ('Y'), + helicopter platfrom

1988, Almirante Williams: - helicopter platform; + 1 x 1 - 102/62

Naval service

No significant events.
