BLANCO ENCALADA destroyers (1943-1944/1962)





Cochrane 1979

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Blanco Encalada (ex-Wadleigh) 14   Bath Iron Wks, USA 4/1943 7.8.1943 10/1943 // 26.7.1962 stricken 4.1982
Cochrane (ex-Rooks) 15   Seattle-Tacoma, Seattle, USA 10/1943 6.6.1944 9/1944 // 26.7.1962 stricken 4.1982


Technical data


Displacement standard, t

2325 - 2276

Displacement full, t

2924 - 3005

Length, m

112.5 wl 114.7 oa

Breadth, m

12.1

Draught, m

4.19 full load

No of shafts

2

Machinery

2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

60000

Max speed, kts

38

Fuel, t

oil 492

Endurance, nm(kts)6500 (15)
Armament

4 x 1 - 127/38 Mk 30, 3 x 2 - 76/50 Mk 33, 1 x 5 - 533 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 6 DCT, 2 DCR (56)

Electronic equipment

SPS-6, SPS-10, Mk 25, Mk 34 radars, QCJ sonar

Complement

273



Standard scale images


<i>Cochrane </i>1963

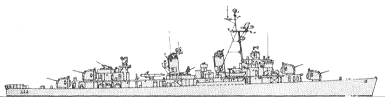

Cochrane 1963
<i>Blanco Encalada </i>1980

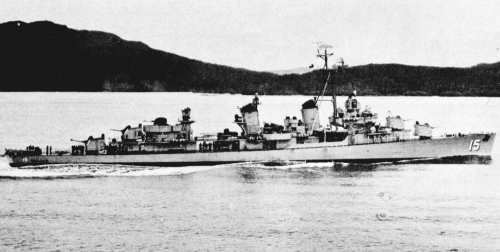

Blanco Encalada 1980


Graphics


<i>Cochrane</i> 1979

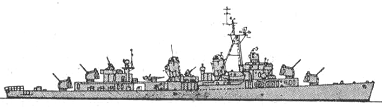

Cochrane 1979


Project history

Former USN Fletcher class destroyers. Initially three more Fletchers were to have been transferred in 1966, but really four Charles Lawrence class APDs were received.

Modernizations

None.

Naval service

No significant events.
