ALMIRANTE LATORRE light cruiser (1947/1971)

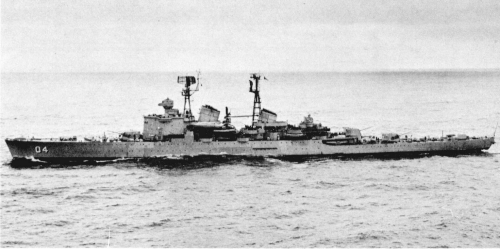

Almirante Latorre 1979

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Almirante Latorre (ex-Göta Lejon) 04   Eriksberg, Göteborg, Sweden 27.9.1943 17.11.1945 15.12.1947 // 15.7.1971 deleted 9.1984


Technical data


Displacement standard, t

7650

Displacement full, t

9238

Length, m

174.0 pp 180.2 oa

Breadth, m

16.7

Draught, m

5.70 normal 6.50 max

No of shafts

2

Machinery

2 sets De Laval geared steam turbines, 4 Motala 4-drum boilers

Power, h. p.

90000

Max speed, kts

33

Fuel, t

oil

Endurance, nm(kts)4350(14)
Armour, mm

belt: 70 + 20, deck: 30 + 30, turrets: 125 - 50, CT: 20

Armament

1 x 3 - 152/53 M42, 2 x 2 - 152/53 M42, 4 x 1 - 57/60 M50, 11 x 1 - 40/70 M48, 2 x 3 - 533 TT, 120 mines, 4 DCR

Electronic equipmentLW-03, type 277, type 293, fire control radars
Complement

783



Standard scale images

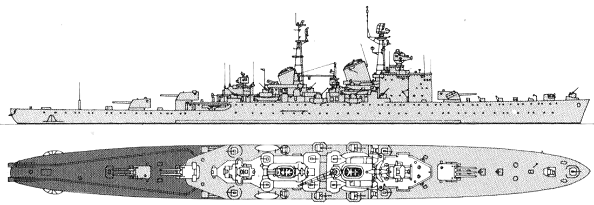

<i>Almirante Latorre </i>1980
Almirante Latorre 1980


Graphics


<i>Almirante Latorre</i> 1979
Almirante Latorre 1979


Project history

Former Swedish Tre Kronor class cruiser.

Ship protection

Vertical protection consisted of 20mm plating and inner 80-70mm main belt. Two flat 30mm decks were connected with its upper and lower edges, magazines and machinery had additional 50-20mm horizontal armour. Upper deck was built from 20mm construction steel. Turrets had 125mm faces, 50mm roofs, 30mm sides and 80mm rears, main magazines had 30mm protection.

Modernizations

None.

Naval service

No significant events.
