GUARDIAMARINA RIQUELME fast attack craft (missile) (1972-1975/1997-1998)

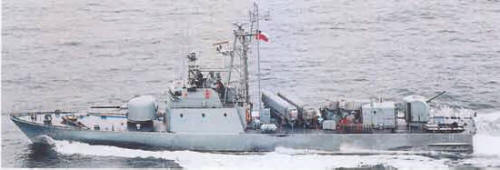

Teniente Uribe 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Guardiamarina Riquelme (ex-Wolf, ex-S49) | 36 | CMN, Cherbourg, France | 23.1.1973 | 11.1.1974 | 4.3.1975 // 27.8.1997 | stricken 12.2012 | |
| Teniente Orella (ex-Elster, ex-S54) | 37 | Lürssen, Vegesack, West Germany | 29.6.1973 | 8.7.1974 | 27.11.1974 // 27.8.1997 | stricken 2014 | |
| Teniente Serrano (ex-Tiger, ex-S41) | 38 | CMN, Cherbourg, France | 11.10.1971 | 27.9.1972 | 30.10.1972 // 10.1998 | stricken 2014 | |
| Teniente Uribe (ex-Kranich, ex-S60) | 39 | Lürssen, Vegesack, West Germany | 9.5.1974 | 26.5.1975 | 6.8.1975 // 10.1998 | stricken 2014 |
Technical data
| Displacement standard, t | 234 |
|---|---|
| Displacement full, t | 264 |
| Length, m | 45.9 pp 47.0 oa |
| Breadth, m | 7.10 |
| Draught, m | 2.66 full load |
| No of shafts | 4 |
| Machinery | 4 MTU 16V538 TB90 (MD872) diesels |
| Power, h. p. | 14000 |
| Max speed, kts | 35.8 |
| Fuel, t | diesel oil 39 |
| Endurance, nm(kts) | 1600(15) |
| Armament | 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564 |
| Electronic equipment | 3RM20, Triton-G, Castor II radars |
| Complement | 30 |
Standard scale images
Guardiamarina Riquelme 2000
Graphics
Teniente Uribe 2001
Project history
Type 148 FACs of Bundesmarine. German EW equipment was removed prior to transfer.
Modernizations
2000s, all: diesels were replaced by 4 MTU 16V396 (13000hp, 34kts)
Naval service
No significant events.
