IQUIQUE fast attack craft (missile) (1970/1989)

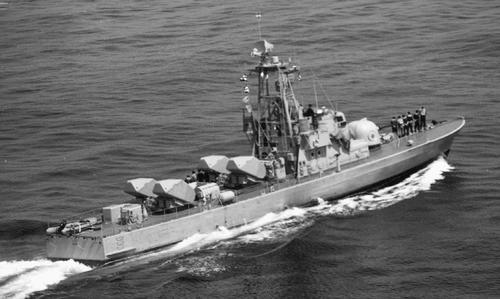

Iquique 1992

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Iquique (ex-חנית [Hanit]) 32   CMN, Cherbourg, France   1969 1970 // 1.1989 stricken 2.2000
Covadonga (ex-חץ [Hetz]) 33   CMN, Cherbourg, France   14.12.1969 1970 // 1.1989 stricken 2.2000


Technical data


Displacement standard, t

220

Displacement full, t

250

Length, m

45.0

Breadth, m

7.00

Draught, m

1.80 mean 2.50 propellers

No of shafts4
Machinery

4 Maybach-Mercedes MD871 diesels

Power, h. p.

14000

Max speed, kts

40

Fuel, tdiesel oil 30
Endurance, nm(kts)2500(15)
Armament

2 x 3 Gabriel I SSM (6 Gabriel I), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 12.7/90

Electronic equipment

THD1040 Neptune, L/M-2221 Orion radars, MN-53, Rattler ECM suites, 4x ACDS, 1x 72LCRL decoy RL

Complement40 - 45


Standard scale images


<i>Covadonga </i>1990
Covadonga 1990


Graphics


<i>Iquique </i>1992
Iquique 1992


Project history

Israeli Sa'ar 3 FACs. Usually carried only 4 missiles instead of 6.

Modernizations

None.

Naval service

No significant events.
