CAYMAN PROTECTOR patrol launch (1994)
Cayman Protector 2010
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Cayman Protector |
SeaArk, Monticello, USA: Cayman Protector |
1994: Cayman Protector |
none |
none |
in service (2020): Cayman Protector |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 17 |
| Length, m | 14.6 |
| Breadth, m | 4.30 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3208TA diesels |
| Power, h. p. | 720 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon radar |
| Complement | 4 |
Graphics

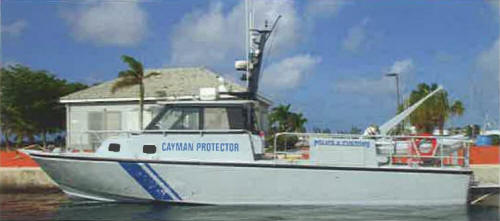

Cayman Protector 2010
Project history
Dauntless class. Aluminium construction.
Modernizations
None.
Naval service
: No significant events.
