CAYMAN GUARDIAN patrol boat (2009)
Cayman Guardian 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Cayman Guardian |
SeaArk, Monticello, USA: Cayman Guardian |
2009: Cayman Guardian |
none |
none |
in service (2020): Cayman Guardian |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 27 |
| Length, m | 19.8 |
| Breadth, m | 5.50 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(22) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon radar |
| Complement | 6 |
Graphics

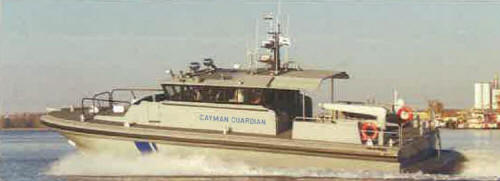

Cayman Guardian 2008
Project history
Dauntless RAM 65ft class. Aluminium construction.
Modernizations
None.
Naval service
: No significant events.
