ST. LAURENT destroyer escorts (1955-1957)

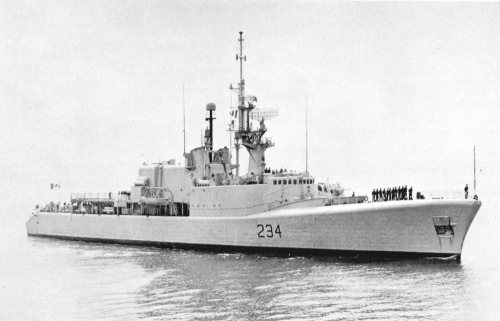

Assiniboine 1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate
St. Laurent DDE205   Canadian Vickers, Montreal 22.11.1950 30.11.1951 29.10.1955 paid off 6.1974, sold 1979
Saguenay DDE206   Halifax SY 4.4.1951 30.7.1953 15.12.1956 paid off 6.1990, sold 1990
Skeena DDE207   Burrard, Vancouver 1.6.1951 19.8.1952 30.3.1957 paid off 11.1993, sold 1996
Ottawa DDE229   Canadian Vickers, Montreal 8.6.1951 29.4.1953 10.11.1956 paid off 7.1992, sold 1992
Margaree DDE230   Halifax SY 12.9.1951 29.3.1956 5.10.1957 paid off 5.1992, BU 1994
Fraser DDE233   Burrard, Vancouver 11.12.1951 19.2.1953 28.6.1957 paid off 10.1994, BU 2011
Assiniboine DDE234   Marine Industries, Sorel 19.5.1952 12.2.1954 16.8.1956 paid off 12.1988, harbour TS 1989


Technical data


Displacement standard, t

2000

Displacement full, t

2600

Length, m

111.6 wl 113.1 oa

Breadth, m

12.8

Draught, m

4.20

No of shafts

2

Machinery

2 sets English Electric geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

30000

Max speed, kts

28

Fuel, t

oil

Endurance, nm(kts)

4570(12)

Armament

2 x 2 - 76/50 Mk 33, 2 x 1 - 40/60 Boffin, 2 x 3 - 305 Limbo Mk 10 ASW RL

Electronic equipmentSPS-10, SPS-12, SPG-48 radars, SQS-501, SQS-502, SQS-503 sonars
Complement

290



Graphics


<i>Assiniboine </i>1980
Assiniboine 1980


Project history

In the late 1940s there was a pressing NATO requirement for anti-submarine vessels, and funds were voted for seven destroyer escorts or frigates for the RCN. The British Whitby design was still on the drawing-boards and as the USN had nothing which met the exacting RCN Staff Requirement it was decided to design a new class of ship in Canada. Using the services of the Montreal naval architects, German & Milne, and under the direction of a senior constructor, Rowland Baker, seconded from the Director of Naval Construction, work started in 1949. Baker produced a design basically similar to the Whitby, but incorporating several ideas of his own. The machinery was identical with the British ships and St Laurent's was in fact imported from the UK, but electronics and electrical gear were of American and Canadian design. To flatter Canadian susceptibilities, Baker was careful to make the appearance as different as possible from the Whitby, but the ship which resulted was virtually a Type 12 specification (albeit with a different hull form) translated by a different design team.

Modernizations

1963, St. Laurent, Assiniboine; 1964, Ottawa; 1965, Saguenay, Skeena, Margaree; 1966, Fraser: one funnel was replaced by twin uptakes; - 1 x 2 - 76/50, 2 x 1 - 40/60, 1 x 3 - 305 Limbo Mk 10 ASWRL; + 1 CHSS-2 Sea King helicopter, hangar, helicopter deck, SQS-504 VDS sonar

1979, Assiniboine; 1980, Saguenay, Margaree; 1981, Skeena; 1982, Ottawa, Fraser: + WLR-1 ECM suite

Naval service

No significant events.
