MACKENZIE destroyer escorts (1962-1963)





Saskatchewan 1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Mackenzie DDE261   Canadian Vickers, Montreal 15.12.1958 25.5.1961 6.10.1962 paid off 8.1993, sold 3.1995
Saskatchewan DDE262   Victoria Machinery Depot 29.10.1959 1.2.1961 16.2.1963 paid off 3.1994, sold 1997
Yukon DDE263   Burrard, North Vancouver 25.10.1959 27.7.1961 25.5.1963 paid off 12.1993, scuttled 2000
Qu'Appelle DDE264   Davie SB, Lauzon 14.1.1960 2.5.19662 14.9.1963 paid off 3.1994, BU


Technical data


Displacement standard, t

2000

Displacement full, t

2600

Length, m

111.6 wl 113.1 oa

Breadth, m

12.8

Draught, m

4.20

No of shafts

2

Machinery

2 sets English Electric geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

30000

Max speed, kts

28

Fuel, t

oil

Endurance, nm(kts)

4570(12)

Armament

DDE261-263: 1 x 2 - 76/70 Mk 6, 1 x 2 - 76/50 Mk 33, 2 - 324 TL, 2 x 3 - 305 Limbo Mk 10 ASW RL

DDE264: 2 x 2 - 76/50 Mk 33, 2 - 324 TL, 2 x 3 - 305 Limbo Mk 10 ASW RL

Electronic equipmentSPS-10, SPS-12, SPG-48, Sperry Mk II radars, SQS-501, SQS-502, SQS-503, SQS-11 sonars
Complement

290



Graphics

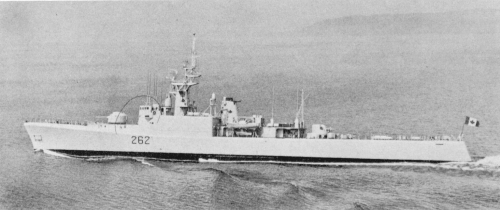

<i>Saskatchewan </i>1980
Saskatchewan 1980


Project history

Four more 'repeat Restigouche' were ordered m 1957, but the opportunity was taken to improve habitability and provide better pre-wetting and better bridge and weatherdeck fittings to cope with extreme cold. Originally they were rated as DDs, like the Restigouche class, but they carry DDE pennant numbers.

Modernizations

1982, Qu'Appelle; 1983, Yukon; 1984, Saskatchewan; 1985, Mackenzie: - 2 - 324 torpedo launchers, 2 x 3 - 305 Limbo ASWRL, SQS-502, SQS-503 sonars; + 2 x 3 - 324 TT, SQS-505 sonar, WLR-1 ECM suite

Naval service

No significant events.
