ANNAPOLIS destroyer escorts (1964)

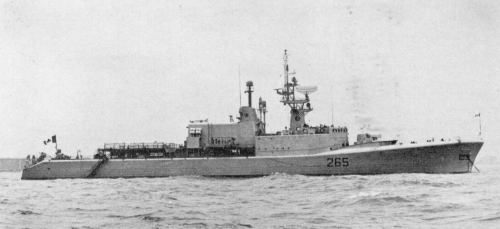

Annapolis 1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Annapolis DDE265   Halifax SY 2.9.1961 27.4.1963 19.12.1964 paid off 11.1996, scuttled 2015
Nipigon DDE266   Marine Industries, Sorel 5.8.1960 10.12.1961 30.5.1964 paid off 7.1998, scuttled 2003


Technical data


Displacement standard, t

2400

Displacement full, t

3000

Length, m

111.6 wl 113.1 oa

Breadth, m

12.8

Draught, m

4.20

No of shafts

2

Machinery

2 sets English Electric geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

30000

Max speed, kts

28

Fuel, t

oil

Endurance, nm(kts)

4570(12)

Armament

1 x 2 - 76/50 Mk 33, 2 - 324 TL, 1 x 3 - 305 Limbo Mk 10 ASW RL, 1 helicopter (CH-124 Sea King)

Electronic equipmentSPS-10, SPS-12, Sperry Mk II, SPG-48, Sperry Mk II radars, SQS-501, SQS-502, SQS-503, SQS-504, SQS-10/11 sonars
Complement

228



Graphics


<i>Annapolis </i>1980
Annapolis 1980


Project history

The final development of the original St. Laurent ordered in 1959 incorporated all the improvements approved for the earlier ships, particularly the Sea King helicopter deck and hangar. Because of the extra topweight the lighter USN-pattern 76mm/50 Mk 33 was reintroduced in place of the British-pattern Mk 6.

Modernizations

1977-1979, both: - 2 - 324 torpedo launchers; + 2 x 3 - 324 TT

1984, Nipigon; 1986, Annapolis: - 1 x 3 - 305 Limbo ASWRL, SPS-10, SPS-12, Sperry Mk II radars, SQS-501 sonar; + SPS-502, SPS-503, Sperry Mk 127E radars, SQR-501 CANTASS sonar, CANEWS ECM suite, 4x SRBOC decoy RL

Naval service

No significant events.
