SIR WILFRED GRENFELL patrol ship (1987)
Sir Wilfred Grenfell 1997
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Sir Wilfred Grenfell | Marystown SY | 12.1987 | Coast Guard 4.1995, in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 3753 |
| Length, m | 59.6 pp 68.5 oa |
| Breadth, m | 15.0 |
| Draught, m | 5.42 |
| No of shafts | 2 |
| Machinery | 2 Deutz 268-2SBV16M diesels + 2 Deutz 268-SBV9M diesels |
| Power, h. p. | 13040 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil 750 |
| Endurance, nm(kts) | 11000(11.5) |
| Armament | 2 x 1 - 12.7/90 (fitted for), aft deck can be used for helicopter |
| Electronic equipment | Decca Bridgemaster II C252, Decca Bridgemaster C253 radars |
| Complement | 20 + 16 passengers |
Graphics

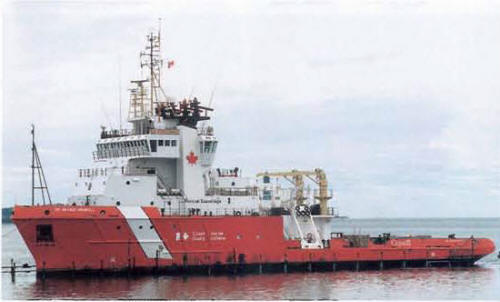

Sir Wilfred Grenfell 1997
Project history
Patrol ship of Department of Fisheries and Oceans. Two Hurricane 740 fast RIBs, one Zodiac RIB. 6t crane, 6 water cannons, hospital for 10 persons. Bollard pull is 146t.
Modernizations
None.
Naval service
No significant events.
