LOUIS M. LAUZIER patrol craft (1976-1977)





Louisburg 1999

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Louis M. Lauzier     Breton Industries, Port Hawkesbury     1976 Coast Guard 4.1995, disposed 2014
Louisburg     Breton Industries, Port Hawkesbury     1977 Coast Guard 4.1995, disposed 2013


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Louis M. Lauzier     Breton Industries, Port Hawkesbury     1976 Coast Guard 4.1995, disposed 2014 Louisburg     Breton Industries, Port Hawkesbury     1977 Coast Guard 4.1995, disposed 2013

Technical data


Displacement standard, t
Displacement full, t370
Length, m37.8
Breadth, m8.20
Draught, m2.60
No of shafts2
Machinery2 Caterpillar 16-cyl diesels
Power, h. p.2400
Max speed, kts13.5
Fuel, tdiesel oil 48
Endurance, nm(kts)3840(10)
Armamentnone
Electronic equipment2x Decca BridgeMaster 180 radars
Complement8


Graphics

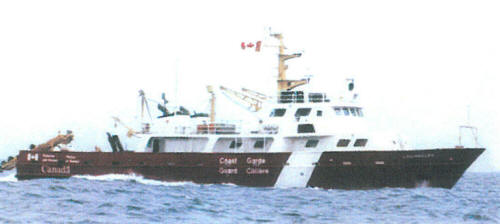

<i>Louisburg </i>1999
Louisburg 1999


Project history

Patrol craft of Department of Fisheries and Oceans. Carried one Zodiac 640 rescue RIBs, launched from a stern ramp.

Modernizations

None.

Naval service

No significant events.
