JAMES SINCLAIR patrol craft (1981)





James Sinclair 1981

Ships


Name No Yard No Builder Laid down Launched Comp Fate
James Sinclair     John Manly SY, Vancouver     4.1981 Coast Guard 4.1995, disposed 1998


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate James Sinclair     John Manly SY, Vancouver     4.1981 Coast Guard 4.1995, disposed 1998

Technical data


Displacement standard, t
Displacement full, t430
Length, m36.6 pp 37.8 oa
Breadth, m8.40
Draught, m2.43
No of shafts2
Machinery2 MTU 12V538 TB91 diesels
Power, h. p.4600
Max speed, kts16.5
Fuel, tdiesel oil
Endurance, nm(kts)
Armament2 x 1 - 12.7/90
Electronic equipment2x Sperry radars
Complement


Graphics

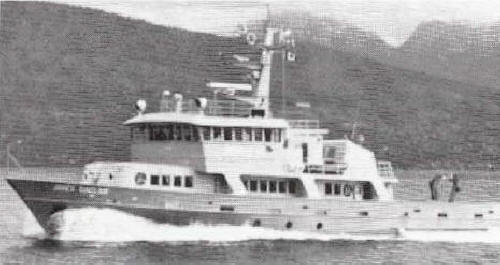

<i>James Sinclair </i>1981
James Sinclair 1981


Project history

Patrol craft of Department of Fisheries and Oceans.

Modernizations

None.

Naval service

No significant events.
