HARP patrol craft (1986)





Hood 1999

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Harp     Georgetown SY 15.12.1985 20.9.1986 12.12.1986 Coast Guard 4.1995, in service (2019)
Hood     Georgetown SY 15.12.1985 5.11.1986 12.12.1986 Coast Guard 4.1995, retired 2002


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Harp     Georgetown SY 15.12.1985 20.9.1986 12.12.1986 Coast Guard 4.1995, in service (2019) Hood     Georgetown SY 15.12.1985 5.11.1986 12.12.1986 Coast Guard 4.1995, retired 2002

Technical data


Displacement standard, t
Displacement full, t225
Length, m21.5 pp 24.5 oa
Breadth, m7.60
Draught, m2.50
No of shafts2
Machinery2 Caterpillar 3408-BDITA diesels
Power, h. p.750
Max speed, kts11
Fuel, tdiesel oil 29
Endurance, nm(kts)500(9.5)
Armamentnone
Electronic equipmentSperry Mk 1270E radar
Complement7


Graphics

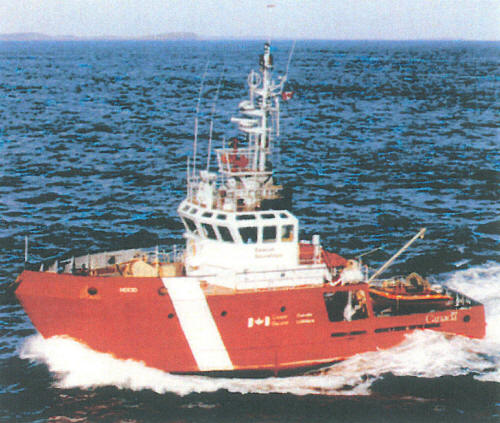

<i>Hood </i>1999
Hood 1999


Project history

Patrol craft of Department of Fisheries and Oceans. Commissioned as ice-reinforced rescue ships. Carry a Zodiac RIB.

Modernizations

1990s, both: - Sperry Mk 1270E radar; + 2x Decca BridgeMaster II C181/4 radars

Naval service

No significant events.
