ESTEVAN REEF patrol boats (1988-1990)
Lewis Reef
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Estevan Reef Lewis Reef Robson Reef |
Canoe Cove, Sidney: Estevan Reef, Robson Reef Rivtow Straits, Vancouver: Lewis Reef |
1988: Estevan Reef 1989: Lewis Reef 1990: Robson Reef |
None |
None |
2001: Estevan Reef 2002: Lewis Reef 2004: Robson Reef |
Technical data
| Displacement standard, t | 52brt |
|---|---|
| Displacement full, t | |
| Length, m | 17.5 |
| Breadth, m | 5.20 |
| Draught, m | 2.40 |
| No of shafts | 1 |
| Machinery | 1 Deutz BA6M816 diesel |
| Power, h. p. | 444 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil 4 |
| Endurance, nm(kts) | 1100(10) |
| Armament | none |
| Electronic equipment | Furuno FR-1510 radar |
| Complement | 3 |
Graphics

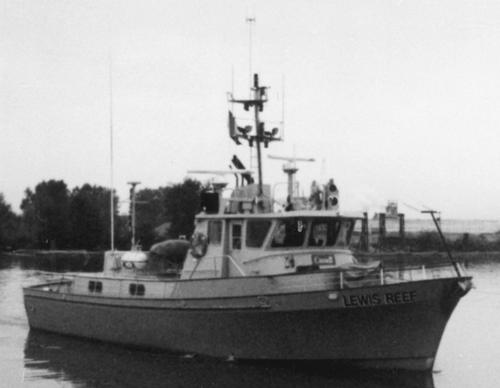

Lewis Reef
Project history
Patrol boats of Department of Fisheries and Oceans, in 1995 transferred to Coast Guard
Modernizations
None.
Naval service
No significant events.
