CUMELLA patrol boats (1983-1984)





Cumella 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Cumella     A. F. Theriault, Meteghan River     1983 Coast Guard 4.1995, retired 2009
Groswater Bay     A. F. Theriault, Meteghan River     1984 retired early 1990s


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Cumella     A. F. Theriault, Meteghan River     1983 Coast Guard 4.1995, retired 2009 Groswater Bay     A. F. Theriault, Meteghan River     1984 retired early 1990s

Technical data


Displacement standard, t
Displacement full, t110
Length, m23.2
Breadth, m4.80
Draught, m2.00
No of shafts2
Machinery2 General Motors Detroit Diesel V-6 diesels
Power, h. p.1680
Max speed, kts15
Fuel, tdiesel oil 6
Endurance, nm(kts)600(12)
Armamentnone
Electronic equipmentFuruno FR-8050D, Furuno FR-8100D radars
Complement4


Graphics

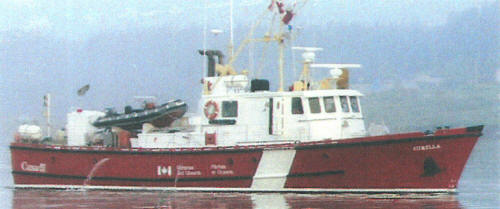

<i>Cumella </i>2001
Cumella 2001


Project history

Patrol craft of Department of Fisheries and Oceans. Carried Hurricane RIB.

Modernizations

None.

Naval service

No significant events.
