CHEBUCTO patrol ship (1966)
Chebucto 1971
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Chebucto | Ferguson, Pictou | 1966 | Coast Guard 4.1995, deleted 1998 |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 865 normal |
| Length, m | 54.6 |
| Breadth, m | 9.45 |
| Draught, m | |
| No of shafts | 1 |
| Machinery | 2 Fairbanks-Morse 38D81/8x8 diesels |
| Power, h. p. | 2560 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6000(12) |
| Armament | 1 x 1 - 76/50 Mk 20 |
| Electronic equipment | radar |
| Complement | 35 |
Graphics

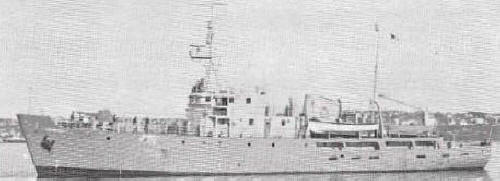

Chebucto 1971
Project history
Patrol ship of Department of Fisheries and Oceans.
Modernizations
1970s: - 1 x 1 - 76/50
Naval service
No significant events.
