ARROW POST patrol craft (1991)





Arrow Post 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Arrow Post     Hike Metal Products, Wheatley     1991 Coast Guard 4.1995, stricken 7.2016


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Arrow Post     Hike Metal Products, Wheatley     1991 Coast Guard 4.1995, stricken 7.2016

Technical data


Displacement standard, t228
Displacement full, t~300
Length, m29.0
Breadth, m8.80
Draught, m3.35
No of shafts1
Machinery1 Caterpillar 3512 TA diesel
Power, h. p.1300
Max speed, kts12
Fuel, tdiesel oil 45
Endurance, nm(kts)2800(11)
Armamentnone
Electronic equipmentRaytheon R81-6, Raytheon R82-9 radars
Complement6+6 passengers


Graphics

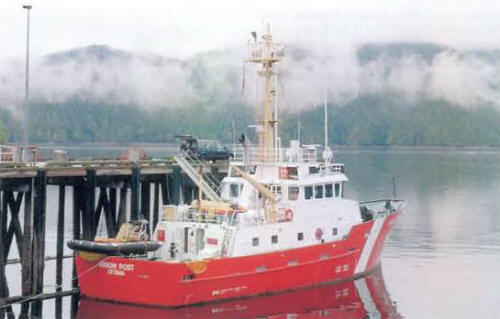

<i>Arrow Post </i>2004
Arrow Post 2004


Project history

Patrol craft of Department of Fisheries and Oceans. Carry two 4m Zodiac RIBs.

Modernizations

None.

Naval service

No significant events.
