L9085 tank landing craft (1943-1944/1956-1962)
T913 1969
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| (ex-L9073, ex-LCT1420) | T911 | Pidgeon Thomas Iron, Memphis, USA | 11.1944 // 1956 | deleted 1969 | |||
| (ex-L9085, ex-LCT622) | T912 | Bison SB, North Tonawanda, USA | 11.1943 // 1956 | deleted 1969 | |||
| (ex-L9091, ex-LCT720) | T913 | Quincy Bargebuilders, USA | 2.1944 // 1956 | deleted 1969 | |||
| (ex-LSU783, ex-LCT783) | T914 | Mount Vernon Bridge, USA | 2.1944 | 21.2.1944 | 2.1944 // 5.1962 | deleted 1979 | |
| (ex-LSU1421, ex-LCT1421) | T915 | Pidgeon Thomas Iron, Memphis, USA | 11.1944 // 5.1962 | deleted 1979 |
Technical data
| Displacement standard, t | 160 |
|---|---|
| Displacement full, t | 309 - 320 |
| Length, m | 32.0 wl 36.3 oa |
| Breadth, m | 9.96 |
| Draught, m | at landing: 1.09 fore, 1.22 aft |
| No of shafts | 3 |
| Machinery | 3 Grey Marine diesels |
| Power, h. p. | 675 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700 (7) |
| Armament | 2 x 1 - 20/70 Mk 10 |
| Military load | 4 medium or 3 heavy tanks or 150 t of cargo |
| Electronic equipment | some: radar |
| Complement | 13 |
Standard scale images
T914 1972
Graphics

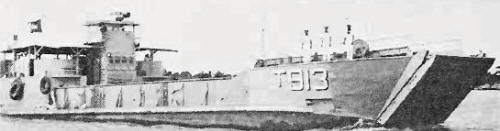

T913 1969
Project history
Former USN LCT(6) type tank landing craft; three were transferred from French Navy and later two from the USN.
Modernizations
None.
Naval service
No significant events.
