CAMBODIA
COASTAL FORCES
1141 patrol craft (2007)
1141 and 1142 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 1141 | China | 7.11.2007 | in service (2019) | ||||
| 1142 | China | 7.11.2007 | in service (2019) | ||||
| 1143 | China | 7.11.2007 | in service (2019) | ||||
| 1144 | China | 7.11.2007 | in service (2019) |
Technical data
| Displacement standard, t | 200 |
|---|---|
| Displacement full, t | 250 |
| Length, m | 44.0 pp 46.8 oa |
| Breadth, m | 7.20 |
| Draught, m | 2.00 |
| No of shafts | 4 |
| Machinery | 4 MTU 16V2000 M90 diesels |
| Power, h. p. | 7200 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 1 x 2 - 37/66 type 76A/88, 1 x 2 - 23/82 ZU-23-2, 1 x 2 - 14.5/93 |
| Electronic equipment | JMA 5312, JMA 5106 radars |
| Complement | 30 |
Graphics

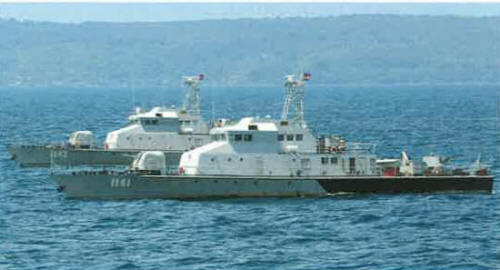

1141 and 1142 2012
Project history
New design, similar craft were delivered to Ghana and Congo.
Modernizations
None.
Naval service
No significant events.
