POBEDA submarines (1956/1958)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| С-11 Слава [S-11 Slava] (ex-С-244 [S-244]) | 41 | 444 Nosenko Yd, Nikolayev, USSR | 14.12.1955 | 12.4.1956 | 31.8.1956 // 12.9.1958 | stricken 1971 | |
| С-12 Победа [S-12 Pobeda] (ex-С-245 [S-245]) | 42 | 444 Nosenko Yd, Nikolayev, USSR | 24.12.1955 | 20.4.1956 | 14.9.1956 // 12.9.1958 | stricken 8.1972 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 1045 / 1342 |
| Length, m | 76.0 |
| Breadth, m | 6.30 |
| Draught, m | 4.55 |
| No of shafts | 2 |
| Machinery | 2 37D diesels / 2 PG-101 electric motors |
| Power, h. p. | 4000 / 2700 |
| Max speed, kts | 18.3 / 13.1 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8580(10) / 353(2) |
| Armament | 6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) |
| Electronic equipment | Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite |
| Complement | 55 |
| Diving depth operational, m | 170 |
Standard scale images

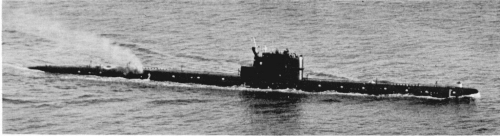

Pobeda 1960
Graphics
Project history
Former Soviet Project 613 medium submarines.
Modernizations
None.
Naval service
No significant events.
