TSIBAR coastal minesweeper (1989/2009)

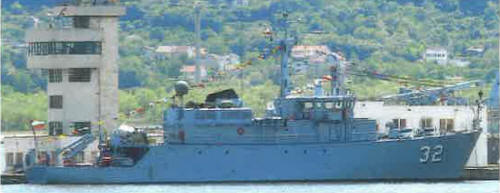

Tsibar 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Цибър [Tsibar] (ex-Myosotis) | 32 | Béliard, Ostende, Belgium | 6.7.1987 | 4.10.1988 | 14.12.1989 // 9.2.2009 | in service (2019) |
Technical data
| Displacement standard, t | 510 |
|---|---|
| Displacement normal, t | 595 |
| Length, m | 47.1 pp 51.5 oa |
| Breadth, m | 8.90 |
| Draught, m | 2.47 hull 3.80 max |
| No of shafts | 1 + 2 Schottel active rudders |
| Machinery | 1 Werkspoor-Wärtsilä A-RUB215 V12 diesel |
| Power, h. p. | 1900 + 240 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 1 - 20/90 20F-2, 2x PAP-104 Mk 5 USV, OD-3 mechanical minesweeping gear |
| Electronic equipment | Decca 1229C radar, DUBM-21B sonar |
| Complement | 34 - 42 |
Standard scale images
Tsibar 2010
Graphics
Tsibar 2009
Project history
Former Belgian Tripartite class minehunter, retired from Belgian service in 2004, purchased in 2007 and transferred in 2009. GRP hull.
Modernizations
None.
Naval service
No significant events.
