NO61 coastal minesweepers (project 1265E) (1981-1985)
Priboy 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-БТ-45 [BT-45]), 1985- Бриз [Briz] | 47, later- 61 | 125 | Avangard, Petrozavodsk, USSR | 3.7.1980 | 13.3.1981 | 30.9.1981 // 14.12.1981 | in service (2019) |
| (ex-БТ-1064 [BT-1064]), 1985- Шквал [Shkval] | 48, later- 62 | 128 | Avangard, Petrozavodsk, USSR | 30.4.1981 | 17.1.1982 | 30.9.1982 // 1983 | in service (2019) |
| (ex-БТ-99 [BT-99]), 1985- Прибой [Priboy] | 49, later- 63 | 131 | Avangard, Petrozavodsk, USSR | 10.3.1982 | 26.2.1983 | 3.9.1983 // 1983 | in service (2019) |
| (ex-...), 1985- Щорм [Shchorm] | 64 | Avangard, Petrozavodsk, USSR | // 4.5.1985 | stricken 6.2008 |
Technical data
| Displacement standard, t | 401 |
|---|---|
| Displacement full, t | 427 |
| Length, m | 49.1 |
| Breadth, m | 8.81 |
| Draught, m | 2.43 |
| No of shafts | 2 |
| Machinery | 2 DRA-210B diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(10) |
| Armament | 1 x 4 Strela-3 SAM (16 9M36), 1 x 2 - 30/71 AK-230M, 1 x 2 - 25/82 2M-3M, 6 mines, GKT-2 mechanical, AT-2 acoustic or PEMT-4 magnetic, AT-2 acoustic or ST-2 magnetic, AT-2 acoustic minesweeping gear or IT-3 USV or 2x 200m mine clearance line charges |
| Electronic equipment | Mius, Don-2 or MR-212/201 Vaygach-U radars, MG-89, MG-7 Braslet sonars |
| Complement | 45 |
Standard scale images
Briz 1990
Graphics

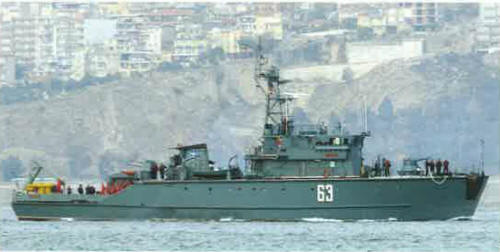

Priboy 2014
Project history
Soviet coastal minesweepers of project 1265E, built specially for Bulgaria.
Modernizations
None.
Naval service
No significant events.
