NO401 inshore minesweepers (projects 1258, 1258E) (1976-1988)

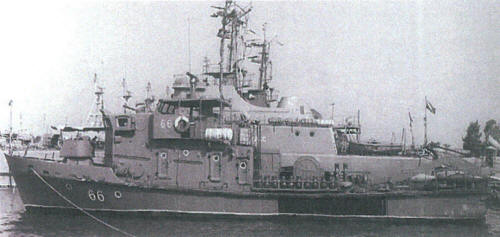

No66 1996

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
  401, 1983- 67   Sredne-Nevskiy, Pontonnyy, USSR     1976 stricken 2009 project 1258E
  68   Sredne-Nevskiy, Pontonnyy, USSR     1988 stricken 2009 project 1258E
  402, 1983- 65   Sredne-Nevskiy, Pontonnyy, USSR     1976 stricken 2012-15 project 1258
  403, 1983- 66   Sredne-Nevskiy, Pontonnyy, USSR     1976 stricken 2012-15 project 1258


Technical data


Displacement standard, t

88

Displacement full, t

pr. 1258: 91

pr. 1258E: 97

Length, m

26.1

Breadth, m

5.40

Draught, m

1.38

No of shafts

2

Machinery

2 3D12 diesels

Power, h. p.

600

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)

pr. 1258: 300(10)

pr. 1258E: 350(10)

Armament

pr. 1258: 1 x 2 - 25/112 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 USV or IU-2 USV or MT-3U or VKT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear or 1 pr. 103 towed mine clearing line chargers carrier

pr. 1258E: 1 x 2 - 25/112 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 USV or MT-3U or OPT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear

Electronic equipment

Kivach radar, MG-7 Braslet sonar

Complement

10



Standard scale images


<i>No68 </i>1990
No68 1990
<i>No401 </i> 1980
No401 1980


Graphics


<i>No66 </i>1996
No66 1996


Project history

Soviet project 1258E and project 1258 inshore minesweepers, presumably transferred new.

Modernizations

None.

Naval service

No significant events.
