NO17 seagoing minesweepers (1950/1951)
1977
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-T-49), 1982- Н. И. Ваптсаров [N. Y. Vaptsarov] | 17, 1961- 21, 1967- 48, 1980- 412 | 532 Yd, Kerch', USSR | 3.3.1948 | 30.9.1949 | 25.3.1950 // 11.8.1951 | TS 1982, stricken 1993 | |
| (ex-T-50) | 18, 1961- 22, 1967- 49, 1980- 421 | 532 Yd, Kerch', USSR | 30.6.1948 | 29.11.1949 | 30.4.1950 // 11.8.1951 | target 1982 |
Technical data
| Displacement standard, t | 500 |
|---|---|
| Displacement normal, t | 569 |
| Length, m | 58.0 |
| Breadth, m | 8.52 |
| Draught, m | 2.25 |
| No of shafts | 2 |
| Machinery | 2 9D diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3200(10) |
| Armament | 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-1 or MT-1P mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gear |
| Electronic equipment | Rif or Giuys-1M, Rym-K or Neptun radars, Tamir-10 sonar |
| Complement | 65 |
Standard scale images

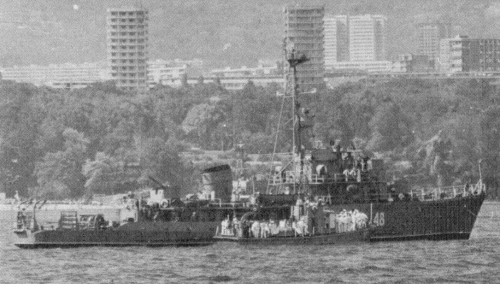

No17 1963
Graphics
1977
Project history
Former Soviet Project 254 seagoing minesweepers.
Modernizations
None.
Naval service
No significant events.
