EMINE patrol launches (2010)
2012
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
515 Емине [Emine] 535 Калиакра [Kaliakra] 615 Силистра [Silistra] 634 Свищов [Svishtov] 635 Лом [Lom] 645 Русе [Ruse] Видин [Vidin] Никопол [Nikopol] |
Baltic Workboats, Nasva, Estonia: 515, 535, 615, 634, 635, 645, Vidin, Nikopol |
2010: 515, 535, 615, 634, 635, 645, Vidin, Nikopol |
none |
none |
in service (2019): 515, 535, 615, 634, 635, 645, Vidin, Nikopol |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 13 |
| Length, m | 13.8 |
| Breadth, m | 4.00 |
| Draught, m | 0.75 |
| No of shafts | 2 waterjets |
| Machinery | 2 Volvo-Penta D11-600 diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 200 |
| Armament | small arms |
| Electronic equipment | Koden radar |
| Complement | 4 |
Graphics

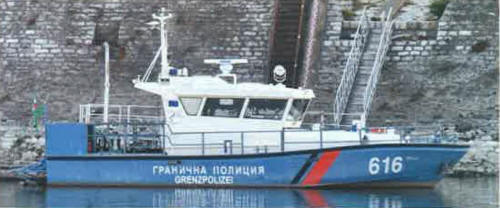

2012
Project history
Patrol 130 design, financed by EU. One unit (Vidin or Nikopol) has no 616.
Modernizations
None.
Naval service
No significant events.
