BURGAS patrol boats (2003-2010)





Kavarna 2008

Ships


Names Builders Completed Losses Transfers Discarding

513 Крайморие [Kraymorie]

514 Бургас [Burgas]

531 Каварна [Kavarna]

534 Варна [Varna]

Шабла [Shabla]

Lürssen, Berne-Bardenfleth, Germany: 513, 514, 531, 534, Shabla

2003: 514, 534

2005: 531

2010: 513, Shabla

none

none

in service (2019): 513, 514, 531, 534, Shabla



Technical data


Displacement standard, t

50

Displacement full, t

60

Length, m

21.0

Breadth, m

5.80

Draught, m

1.40

No of shafts

2

Machinery

2 Deutz-MWM TBD616 diesels

Power, h. p.

3010

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)

500(20)

Armament

small arms

Electronic equipment

2x nav. radars

Complement

9



Graphics

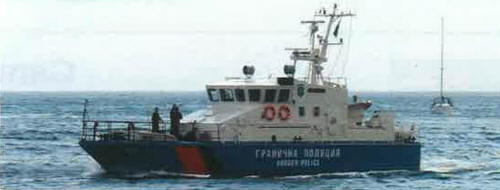

<i>Kavarna </i>2008
Kavarna 2008


Project history

Fassmer FPB21 design, financed by EU.

Modernizations

None.

Naval service

No significant events.
