DAMUAN landing craft (1976-1977)
Puni 2010
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L31 Damuan L32 Puni |
Cheverton, Cowes, UK: L31, 32 | 1976: L31 1977: L32 |
none |
none |
in service (2020): L31, 32 |
Technical data
| Displacement standard, t | L31: 60 light L32: 64 light |
|---|---|
| Displacement full, t | |
| Length, m | L31: 19.8 L32: 22.8 |
| Breadth, m | 6.10 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 6-71 diesels |
| Power, h. p. | 348 |
| Max speed, kts | 8.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(6) |
| Armament | none |
| Military load | 30 t cargo |
| Electronic equipment | Decca RM1216 radar |
| Complement | 8 |
Graphics

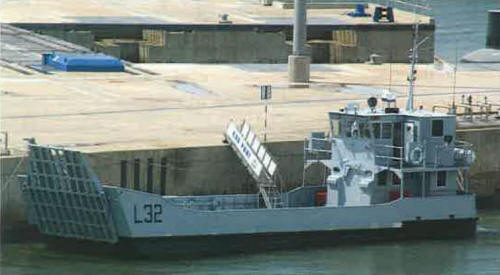

Puni 2010
Project history
Loadmaster-class. Differ by silhouettes.
Modernizations
None.
Naval service
No significant events.
