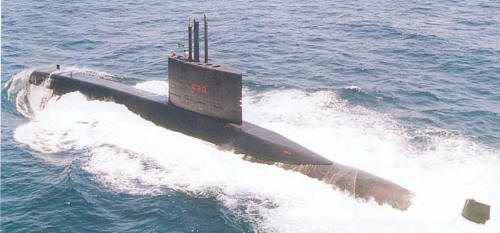

Tapajó 2005

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Tupi	S30		HDW, Kiel	8.3.1985	28.4.1987	6.5.1989	in service (2019)
Tamoio	S31		Arsenal de Marinha do Rio de Janeiro	15.7.1986	18.11.1993	12.12.1994	in service (2019)
Timbira	S32		Arsenal de Marinha do Rio de Janeiro	15.9.1987	5.1.1996	16.12.1996	in service (2019)
Tapajó	S33		Arsenal de Marinha do Rio de Janeiro	6.3.1990	11.6.1998	16.11.1999	in service (2019)

Technical data

Displacement standard, t	1150
Displacement normal, t	1450 / 1590
Length, m	59.5 pp 61.2 oa
Breadth, m	6.20 hull 7.60 stern planes
Draught, m	5.50
No of shafts	1
Machinery	4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor
Power, h. p.	2400 / 5000
Max speed, kts	11 / 21.5
Fuel, t	diesel oil 116
Endurance, nm(kts)	11000(8) (snorkel) / 400(4)
Armament	8 - 533 TT (bow, 16 Mk 24 Tigefish or Tp 62)
Electronic equipment	Calypso III radar, CSU-83/1 (DSQS-21) sonar suite, FAS-3, PRS-3/15 sonars, DR 3000U ECM suite, KAFS A10 CCS
Complement	36
Diving depth operational, m	250

Standard scale images

Graphics

Project history

First boat of the Type 1400 (enlarged version of the Type 209) ordered in 1984 from German yard. Originally five more (two of them to the improved design) were to be ordered from Arsenal de Marinha for a total of six boats in service by the end of the 1990s. However only three were built in Brazil.

Modernizations

2008, Tapajó; 2010, Timbira; 2013, Tupi; 2015, Tamoio: - Mk 24 Tigerfish torpedoes, DR 3000U ECM suite, KAFS A10 CCS; + Mk 48 Mod.6 torpedoes, DR 4000 ECM suite, BYG-501 Mod.1 CCS

Naval service

No significant events.
