RORAIMA river patrol craft (1975-1976)

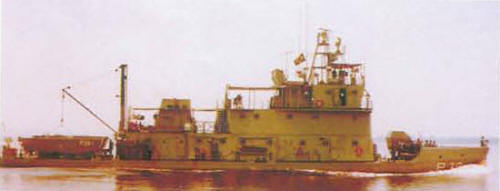

Roraima 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Roraima | P30 | Mc Laren, Niteroi | 9.11.1972 | 21.2.1975 | in service (2019) | ||
| Rondônia | P31 | Mc Laren, Niteroi | 10.1.1973 | 3.12.1975 | in service (2019) | ||
| Amapá | P32 | Mc Laren, Niteroi | 9.3.1975 | 12.1.1976 | in service (2019) |
Technical data
| Displacement standard, t | 340 |
|---|---|
| Displacement full, t | 365 |
| Length, m | 45.0 pp 46.3 oa |
| Breadth, m | 8.45 |
| Draught, m | 1.37 |
| No of shafts | 2 |
| Machinery | 2 MEP-MAN V6V16/18TL diesels |
| Power, h. p. | 1824 |
| Max speed, kts | 14.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6000(12) |
| Armament | 1 x 1 - 40/70 Bofors 350, 2 x 1 - 20/90 GAM-B01, 2 x (1 - 81/12 mortar + 1 - 12.7/90), 4 x 1 - 7.6/90 |
| Military load | 2 LCVP, 8 troops |
| Electronic equipment | Decca, Furuno radars |
| Complement | 47 |
Standard scale images
Amapá 2000
Graphics
Roraima 1998
Project history
Indigenous design for Amazon flotilla.
Modernizations
None.
Naval service
No significant events.
