INHAÚMA corvettes (1989-1994)

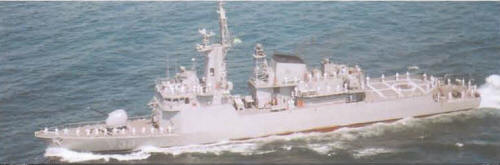

Inhaúma 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Inhaúma | V30 | Arsenal de Marinha do Rio de Janeiro | 23.9.1983 | 13.12.1986 | 12.12.1989 | stricken 11.2016 | |
| Jaceguai | V31 | Arsenal de Marinha do Rio de Janeiro | 15.10.1984 | 8.6.1987 | 2.4.1991 | in service (2019) | |
| Júlio de Noronha | V32 | Arsenal de Marinha do Rio de Janeiro | 15.11.1987 | 15.12.1989 | 7.10.1992 | in service (2019) | |
| Frontin | V33 | Arsenal de Marinha do Rio de Janeiro | 15.12.1987 | 6.2.1992 | 11.3.1994 | stricken 9.2015 |
Technical data
| Displacement standard, t | 1600 |
|---|---|
| Displacement full, t | 1964 |
| Length, m | 90.0 pp 95.8 oa |
| Breadth, m | 11.4 |
| Draught, m | 3.70 mean hull 5.30 sonar |
| No of shafts | 2 |
| Machinery | CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 16V956 TB91 diesels |
| Power, h. p. | 26000 / 7000 |
| Max speed, kts | 26 |
| Fuel, t | gas turbine / diesel oil |
| Endurance, nm(kts) | 4000(15) |
| Armament | 2 x 2 MM40 Exocet SSM (4 MM40), 1 x 1 - 114/55 Mk 8, 2 x 1 - 40/70 Bofors Trinity Mk 3, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT (Mk 46 Mod.2), 1 helicopter (AH-11A Lynx) |
| Electronic equipment | AWS-4, RTN-10X, type 1007 radars, EOS 400 e/o system, ASO4-2 (DSQS-21C) sonar, SLQ-1, SLR-1X ECM suites, 2x Shield decoy RL, CAAIS CCS |
| Complement | 122 |
Standard scale images

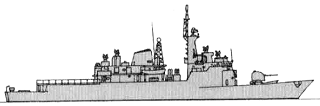

Jaceguai 2010
Graphics
Inhaúma 2007
Project history
These small frigates were designed by the Brazilian Navy with the assistance of the German Marine Technik. First pair ordered on 15 February 1982 and the second on 1 January 1986. Originally it was planned to build twelve such ships and in 1986 the number was raised to sixteen units. Only four ships were completed, while the Brazilian Navy is looking for a new design of cheaper corvette. Júlio de Noronha and Frontin were transferred for completion to the Arsenal de Marinha upon the bankruptcy of Verolme in 1991. These ships proved somewhat top-heavy and the planned Vulcan Phalanx CIWS was not installed on the stern, instead a single SAM launcher was planned later.
Modernizations
2017, Júlio de Noronha; 2018, Jaceguai: - AWS-4, RTN-10X, type 1007 radars, CAAIS CCS; + RAN-20S, RTN-30X, Furuno 8252 radars, Siconta-4 CCS
Naval service
No significant events.
