MINAS GERAIS light aircraft carrier (1945/1960)





Minas Gerais 1971

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Minas Gerais (ex-Vengeance) A11   Swan Hunter, Wallsend, UK 16.11.1942 23.2.1944 15.1.1945 // 6.12.1960 stricken 10.2001


Technical data


Displacement standard, t

13190

Displacement full, t

18040

Length, m

192 pp 211.2 - 211.8 oa

Breadth, m

24.4 wl 36.4 fd

Draught, m

7.09 deep load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 4 Admiralty 3-drum boilers

Power, h. p.

40000

Max speed, kts

25

Fuel, t

oil 3196

Endurance, nm(kts)12000(14)
Armament

2 x 4 - 40/60 Mk 2, 1 x 2 - 40/60 Mk 1, 35 aircraft (S-2E ASW planes, SH-3A helicopters)

Electronic equipment

SPS-4, SPS-12, SPS-8B, 2x SPG-34 radars

Complement1300


Air group


Year Attackers ASW planes Helicopters
1970 --- 8 S-2E Tracker 6 SH-3A Sea King
1995 --- 6 S-2E Tracker 6 SH-3A Sea King, 2 UH-13 Ecureuil II, 3 UH-14 Super Puma
2001 12 AF-1 Skyhawk 6 S-2E Tracker 4 ASH-3D Sea King


Standard scale images

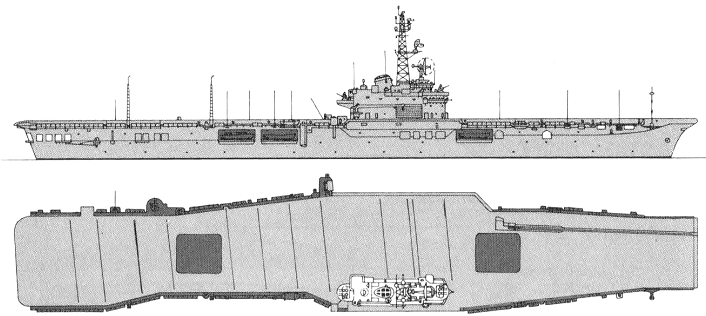

<i>Minas Gerais </i>1975
Minas Gerais 1975

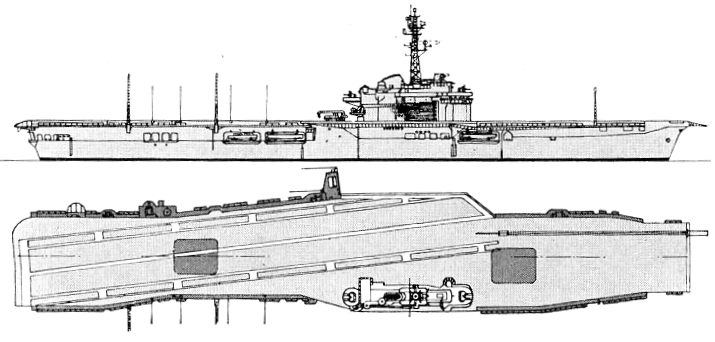

<i>Minas Gerais </i>1965
Minas Gerais 1965


Graphics

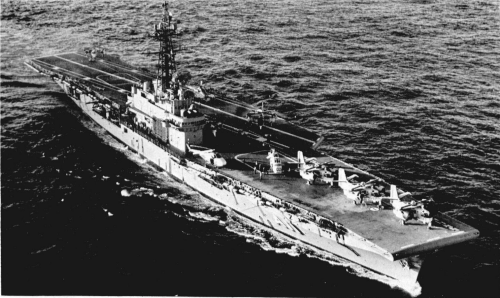

<i>Minas Gerais </i>1971
Minas Gerais 1971


Aircraft facilities

 (fd - 5,131m², ha - 2,142m² / 11,355m³): Flight deck: 210.3x36.4m; hangar: 135.6x15.8x5.3m. Two lifts: 13.7x10.4m, 9t. 1 catapult BS-4 (9t aircraft was launched at 110km/h). Aircraft fuel stowage: 448,200l.

Project history

Minas Gerais was purchased by Brazil for $9m and reconstructed for $27m. She was reconstructed at Verolme Dock, Rotterdam from June 1957 to December 1960. She received an angled deck, steam catapult, mirror-sight deck landing system, new fire control equipment and radar. During reconstruction a 2500kW AC system was installed; current was supplied by four turbo-generators and one diesel generator. Minas Gerais was commissioned 6 December 1960 at Rotterdam and arrived in Rio de Janeiro 13 January 1961. A dispute between the Navy and Air Force delayed deployment until the mid-1960s. The compromise reached was that the Air Force would fly the fixed wing aircraft and the Navy would fly the helicopters. Carrier received attack aircraft only in 1997 (AF-1 (A-4) Skyhawks).

Protection

There were mantlets around aircraft torpedoes warheads rooms only. Their thickness was 10mm. Longitudinal watertight bulkheads covered the machinery.

Modernizations

1970s: + MP1402 radar

1984: - SPS-12, SPS-8B radars; + SPS-40B radar

1991: - SPS-4, MP1402 radars; + AWS-4, 2x Terma Scanter radars, Terma landing system, SLR-2 ECM suite, 2x Shield decoy RL

1995: - 2 x 4 - 40/60, 1 x 2 - 40/60; + 3 x 2 SIMBAD SAM (~24Mistral)

Naval service

No significant events.
