Pirajá 1977

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Piratini	P10		Arsenal de Marinha, Rio de Janeiro			11/1970	in service (2019)

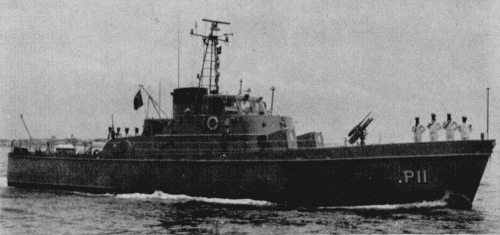

Pirajá	P11		Arsenal de Marinha, Rio de Janeiro			3/1971	in service (2019)
Pampeiro	P12		Arsenal de Marinha, Rio de Janeiro			6/1971	in service (2019)
Parati	P13		Arsenal de Marinha, Rio de Janeiro			7/1971	in service (2019)
Penedo	P14		Arsenal de Marinha, Rio de Janeiro			9/1971	in service (2019)

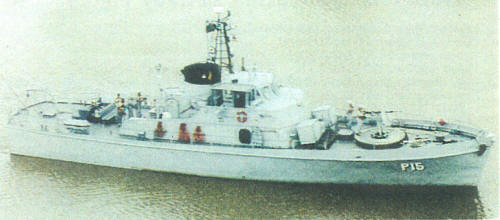

Poti	P15		Arsenal de Marinha, Rio de Janeiro			10/1971	in service (2019)

Technical data

Displacement standard, t	102
Displacement full, t	146
Length, m	29.0
Breadth, m	5.80
Draught, m	1.55
No of shafts	2
Machinery	4 Cummins VT-12M diesels
Power, h. p.	1100
Max speed, kts	18
Fuel, t	diesel oil
Endurance, nm(kts)	1700(12)
Armament	1 x (1 - 12.7/90 + 1 - 81/12 M29 mortar), 2 x 1 - 12.7/90
Electronic equipment	Decca RM1070A radar
Complement	17

Standard scale images

Graphics

Project history

Design was based on the USCG 95ft WPB type.

Modernizations

late 1990s, all: were armed with 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, 1 x 1 - 81/12 M29 mortar, Decca RM1070A and Furuno 3600 radars

Naval service

No significant events.
