GUARDIAN patrol boat (2006)
Guardian 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Guardian |
Austal, Henderson, Australia: Guardian |
2006: Guardian |
none |
none |
in service (2020): Guardian |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 16.0 |
| Breadth, m | 4.87 |
| Draught, m | 1.25 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar C12 diesels |
| Power, h. p. | 1330 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 4 |
Graphics

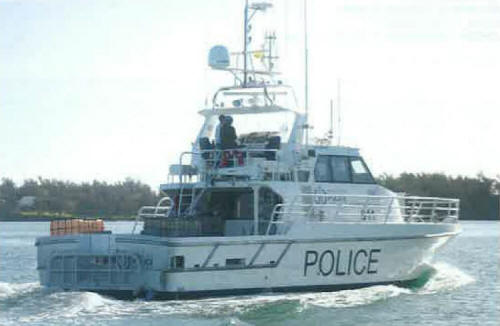

Guardian 2006
GUARDIAN patrol boat (2006)
Project history
Ordered in 2005 as a replacement for 8t Blue Heron.
Modernizations
None.
Naval service
No significant events.
