LEOPOLD I frigates (1991/2005)

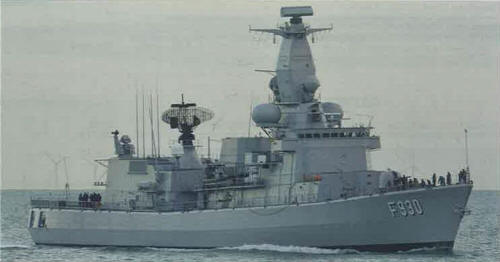

Leopold I 2013 Many thanks to Wolfgang Stoehr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Leopold I (ex-Karel Doorman) | F930 | 364 | KM De Schelde, Vlissingen, Netherlands | 26.2.1985 | 20.4.1988 | 31.5.1991 // 22.12.2005 | in service (2019) |
| Louise-Marie (ex-Willem van der Zaan) | F931 | 365 | KM De Schelde, Vlissingen, Netherlands | 6.11.1985 | 21.1.1989 | 28.11.1991 // 22.12.2005 | in service (2019) |
Technical data
| Displacement standard, t | 2800 |
|---|---|
| Displacement full, t | 3320 |
| Length, m | 114.4 pp 122.3 oa |
| Breadth, m | 14.4 |
| Draught, m | 4.30 hull 6.05 propellers |
| No of shafts | 2 |
| Machinery | F930: CODOG: 2 Rolls-Royce Spey RM-1A gas turbines / 2 Werkspoor-Wärtsilä 12SW 280V12 diesels F931: CODOG: 2 Rolls-Royce Spey RM-1C gas turbines / 2 Werkspoor-Wärtsilä 12SW 280V12 diesels |
| Power, h. p. | F930: 37530 / 9800 F931: 48900 / 9800 |
| Max speed, kts | F930: 29 F931: 30 |
| Fuel, t | gas turbine oil / diesel oil |
| Endurance, nm(kts) | 5000(18) |
| Armament | 2 x 4 Harpoon SSM (8 RGM-84C), 1 x 16 Sea Sparrow SAM (VLS, 16 RIM-7M), 1 x 1 - 76/62 OTO Melara Compact SR, 1 x 7 - 30/77 Goalkeeper, 2 x 1 - 12.7/90, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5), 1 helicopter (SH-14D Sea Lynx) |
| Electronic equipment | F930: Decca 1690/9, SMART-S, Scout, LW-08, 2x STIR-1.8, Goalkeeper radars, PHS-36 sonar, AR700, 2x APECS-II ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, SEWACO VIIA CCS F931: Decca 1690/9, SMART-S, Scout, LW-08, 2x STIR-1.8, Goalkeeper radars, PHS-36 sonar, AR700, 2x APECS-II ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, SEWACO VIIB CCS |
| Complement | 154 |
Standard scale images

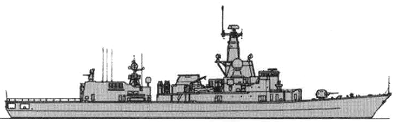

Leopold I 2010
Graphics
Leopold I 2013 Many thanks to Wolfgang Stoehr for additional information on this page.
Project history
Former Dutch frigates of Karel Doorman class, transferred in December 2005 and commissioned by Belgian Navy after refit and modernization 29.3.2007 and 8.4.2008 respectively.
Modernizations
2008, Leopold I; 2010, Louise-Marie: - SH-14D Sea Lynx helicopter; + 1 NH90 helicopter, length oa became 124.3m (helipad was lengthened)
2013, Leopold I: - AR700 ECM suite, SEWACO VIIA CCS; + Seastar radar, APX Vigile ECM suite, SEWACO XI CCS
2015, Louise-Marie: - AR700 ECM suite, SEWACO VIIB CCS; + Seastar radar, APX Vigile ECM suite, SEWACO XI CCS
Naval service
No significant events.
Many thanks to Wolfgang Stoehr for additional information on this page.
