ACKLINS patrol boats (1971-1977)





Inagua 1998

Ships


Names Builders Commissioned Losses Transfers Discarding

P21 Acklins

P22 Eleuthera

P23 Andros

P24 San Salvador

P25 Abaco

P26 Exuma

P27 Inagua

Vosper Thornycroft, Woolston, UK: P21-27

1971: P21-24

1977: P25-27

P21 (fire 1980)

None

1982: P24

1995: P22, 23, 25, 26

2014: P27


Technical data


Displacement standard, t30
Displacement full, t37
Length, m17.1 pp 18.3 oa
Breadth, m5.03
Draught, m1.53
No of shafts2
Machinery2 Caterpillar 3408TA diesels
Power, h. p.950
Max speed, kts19.5
Fuel, tdiesel oil 4
Endurance, nm(kts)650(16)
Armament2 x 1 - 7.6/90
Electronic equipmentDecca 110 radar
Complement11


Graphics

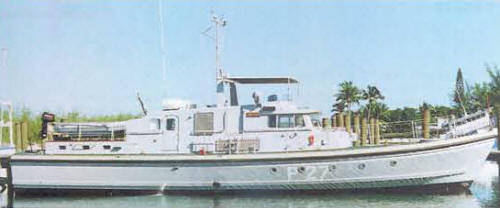

<i>Inagua </i>1998
Inagua 1998


Project history

Keith Nelson type. Fiberglass construction.

Modernizations

None.

Naval service

No significant events.
