AZERBAIJAN
AMPHIBIOUS SHIPS AND CRAFT
D435 small landing ships (1960s/1992)





D436 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
(ex-МДК-... [MDK-...]) D435   USSR     1963-70 // 3.7.1992 stricken ~2015
(ex-МДК-152 [MDK-152]) D436   USSR     1963-70 // 3.7.1992 in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate (ex-МДК-... [MDK-...]) D435   USSR     1963-70 // 3.7.1992 stricken ~2015 (ex-МДК-152 [MDK-152]) D436   USSR     1963-70 // 3.7.1992 in service (2020)

Technical data


Displacement standard, t

460
Displacement normal, t

610
Length, m

54.5
Breadth, m

7.95
Draught, m

2.04
No of shafts

2
Machinery

2 3D12 diesels
Power, h. p.

600
Max speed, kts

10.5
Fuel, t

diesel oil
Endurance, nm(kts)

1600(9)
Armament

none
Military load

3 heavy or medium tanks or 6 - 10 trucks or 176 troops
Electronic equipmentDon radar
Complement

13


Standard scale images

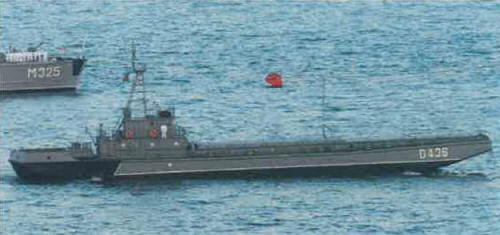

<i>D435 </i>1992
D435 1992


Graphics


<i>D436 </i>2008
D436 2008


Project history

Former Soviet project 106K small landing ships.

Modernizations

None.

Naval service

No significant events.
