BAKILI light frigate (1967/1992)

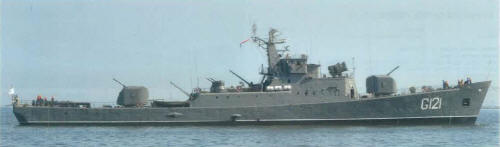

Bakılı 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Bakılı (ex-Бакинец [Bakinets], ex-СКР-16 [SKR-16]) G121 187 Yantar, Kaliningrad, USSR 4.12.1964 21.7.1966 25.7.1967 // 10.9.1992 in service (2020)


Technical data


Displacement standard, t

970

Displacement full, t

1110

Length, m

78.0 pp 82.3 oa

Breadth, m

9.20

Draught, m

2.89 mean 5.92 max

No of shafts

3

Machinery

CODAG, 2 M-2B gas turbines + 1 61B diesel

Power, h. p.

36000 (30000+6000)

Max speed, kts

32

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)

2000(14)

Armament

2 x 2 - 76/59 AK-726, 2 x 5 - 400 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 DCR, 22 mines

Electronic equipment

MR-302 Rubka, Fut-B, Don radars, MG-312 Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite

Complement

106



Standard scale images


<i>Bakılı </i>1995
Bakılı 1995
<i>Bakılı </i>2020
Bakılı 2020


Graphics


<i>Bakılı</i> 2012
Bakılı 2012


Project history

Former Soviet project 159A guard ship, transferred by Russian Caspian Flotilla.

Modernizations

2007: superstructure rebuilt, funnel removed; - 2 x 5 - 400 TT, Fut-B, Don radar; + 2 x 2 - 30/71 AK-230, nav. radar (950/1160t, 4800(10)nm)

Naval service

No significant events.
