ENNS river monitors (1914-1915)

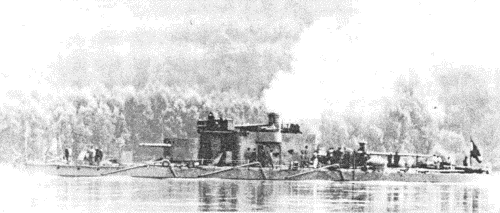

Enns 1917 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Enns   507 STT, Linz 11/1913 7/1914 10/1914 to Yugoslavia 12.1918 (Драва [Drava])
Inn   1200 Ganz & Danubius, Újpest 11/1913 2/1915 4/1915 CTL 22.9.1917


Technical data


Displacement normal, t

536

Displacement full, t
Length, m

57.9

Breadth, m

10.3

Draught, m

1.30

No of shafts

2

Machinery

2 VTE, 2 Yarrow boilers

Power, h. p.

1500

Max speed, kts

13

Fuel, tcoal
Endurance, nm(kts)700(10)
Armour, mm

side: 40, deck: 25, CT: 50

Armament

1 x 2 - 120/42 G. L/45, 3 x 1 - 120/8 Haub. L/10, 2 x 1 - 66/47 G. L/50 BAG, 6 x 1 - 8.80

Complement

95



Standard scale images


<i>Enns </i>1917
Enns 1917


Graphics


<i>Enns </i>1917 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Enns 1917 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Development of the Temes class with one twin turret.

Ship protection

Machinery had 40mm vertical and 25mm horizontal protection.

Modernizations

None.

Naval service

Enns 20.12.1918 was interned in Beograd and entered Yugoslavian Danube flotilla. In January, 1919 she was renamed Drava. 15.4.1920 by results of division of Austro-Hungarian fleet she was officially transferred to Yugoslavia. Inn 22.9.1917 was sunk lower Braila on Danube by a mine; 18.11.1917 she was salvaged and towed off into repair to Budapest but repair remained unfinished till the end of war. 21.3.1919 she passed under control of Hungarian Soviet republic, 13.4.1919 renamed Újvidek; late July, 1919 after repair as Marx she was commissioned by Hungarian Danube flotilia. In November, 1919 ship was interned by Government of Yugoslavia at Novi Sad. Under the treaty on division of Austro-Hungarian fleet ship was transferred to Romania 15.4.1920 and renamed Basarabia.

Many thanks to Wolfgang Stöhr for additional information on this page.
