DALMAT gunboats (1861)





Hum Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Dalmat   5 STT, San Rocco 1860 20.5.1861 1861 hulk 1879
Hum   6 STT, San Rocco 1860 20.5.1861 1861 hulk 1900
Welebich   7 STT, San Rocco 1860 8.6.1861 1861 hulk 1878


Technical data


Displacement normal, t

869

Displacement full, t
Length, m

53.0

Breadth, m

8.70

Draught, m

3.70

No of shafts1
Machinery1 HSE
Power, h. p.

230

Max speed, kts

11.5

Fuel, t

coal

Endurance, nm(kts)
Armament

2 x 1 - 194/14 48pdr SBML, 2 x 1 - 149/14 24pdr SBML

Complement

139



Graphics

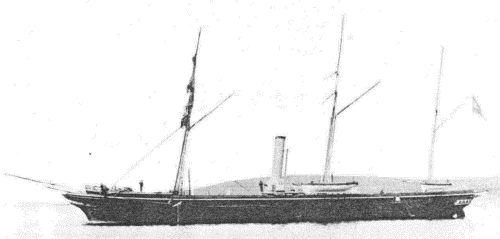

<i>Hum</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Hum Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Screw gunboats.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
