CHAMÄLEON minelayer (1914)

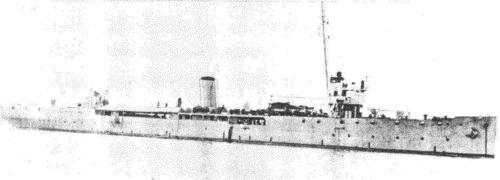

Chamäleon 1916
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Chamäleon | Pola Marinearsenal | 1912 | 15.12.1913 | 12/1914 | to United Kingdom 1920 |
Technical data
| Displacement normal, t | 1165 |
|---|---|
| Displacement full, t | |
| Length, m | 88.2 |
| Breadth, m | 9.20 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 VTE, 4 Yarrow boilers |
| Power, h. p. | 5500 |
| Max speed, kts | 21 |
| Fuel, t | oil |
| Endurance, nm(kts) | |
| Armament | 4 x 1 - 90/42 G. L/45 K.12 TAG/BAG, 240 mines |
| Complement | 154 |
Standard scale images
Chamäleon 1914
Graphics
Chamäleon 1916
Project history
Most modern Austrian minelayer.
Modernizations
None.
Naval service
No significant events.
