No.7 torpedo boats (1910-1911)





No.7 1914 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
No.7   23 Danubius, Fiume 7/1909 30.12.1909 7/1910 to Italy 1920
No.8   24 Danubius, Fiume 8/1909 24.2.1910 5/1910 to United Kingdom 1920
No.9   25 Danubius, Fiume 8/1909 22.3.1910 5/1910 to United Kingdom 1920
No.10   26 Danubius, Fiume 10/1909 14.5.1910 7/1910 to United Kingdom 1920
No.11   27 Danubius, Fiume 10/1909 24.5.1910 12/1910 surrendered to Italy 5.10.1917 (Francesco Rismondo)
No.12   28 Danubius, Fiume 11/1909 31.5.1910 5/1911 wrecked 1918


Technical data


Displacement normal, t

132

Displacement full, t
Length, m

43.3 pp 44.2 wl

Breadth, m

4.40

Draught, m

1.45

No of shafts

1

Machinery

1 VTE, 2 White-Forster boilers

Power, h. p.

2400

Max speed, kts

26.5

Fuel, t

oil

Endurance, nm(kts)
Armament

2 x 1 - 47/40 SFK L/44 S, 2 x 1 - 450 TT

Complement

20



Standard scale images


<i>Tb.VII </i>1910
Tb.VII 1910


Graphics

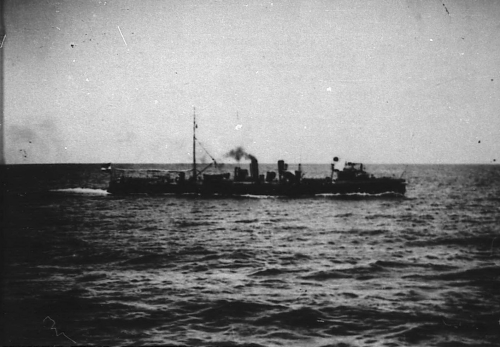

<i>No.7 </i>1914 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
No.7 1914 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Built by Danubius, Fiume, they were virtually the same type as the Tb I class, the only external difference being the searchlight platforms situated on the CT, while the STT boats had their searchlight fitted before the forward funnel. Much more significant was the fact that the Danubius units had a different boiler system, different main and auxiliary machinery, shafts and propellers. It was necessary for reasons of internal politics to let Hungarian industry (represented by Danubius and its Hungarian subcontractors) participate, bur from the point of view of spare part standardization and supply it was without question an unfortunate solution. Another deficiency of this group was the heavy angle of heel which developed at high speed caused by the turning moment of the single propeller; through inexperience the yard was unable to anticipate this and take steps to counter it in the design.

Modernizations

None.

Naval service

All boats survived active war service and were allocated to Italy and scrapped in 1920 (with the exception of No.7 which served the Italian customs until 1926). No.11 suffered a mutiny and was hijacked by her crew on 5 October 1917 after the crew had imprisoned the two officers. The boat crossed the Adriatic and surrendered to the Italians, who commissioned her as Francesco Rismondo; she was stricken in 1925.

Many thanks to Wolfgang Stöhr for additional information on this page.
